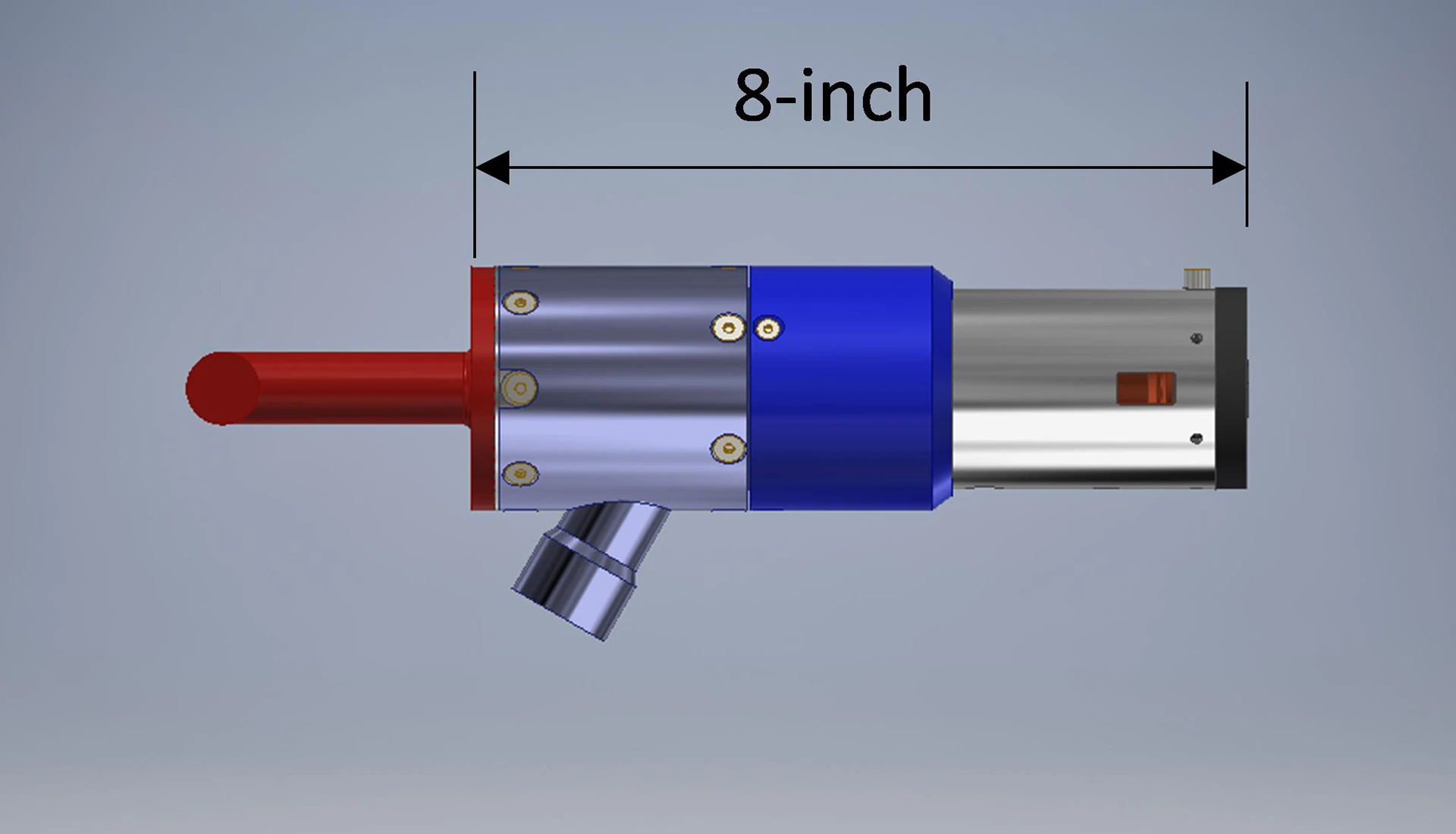

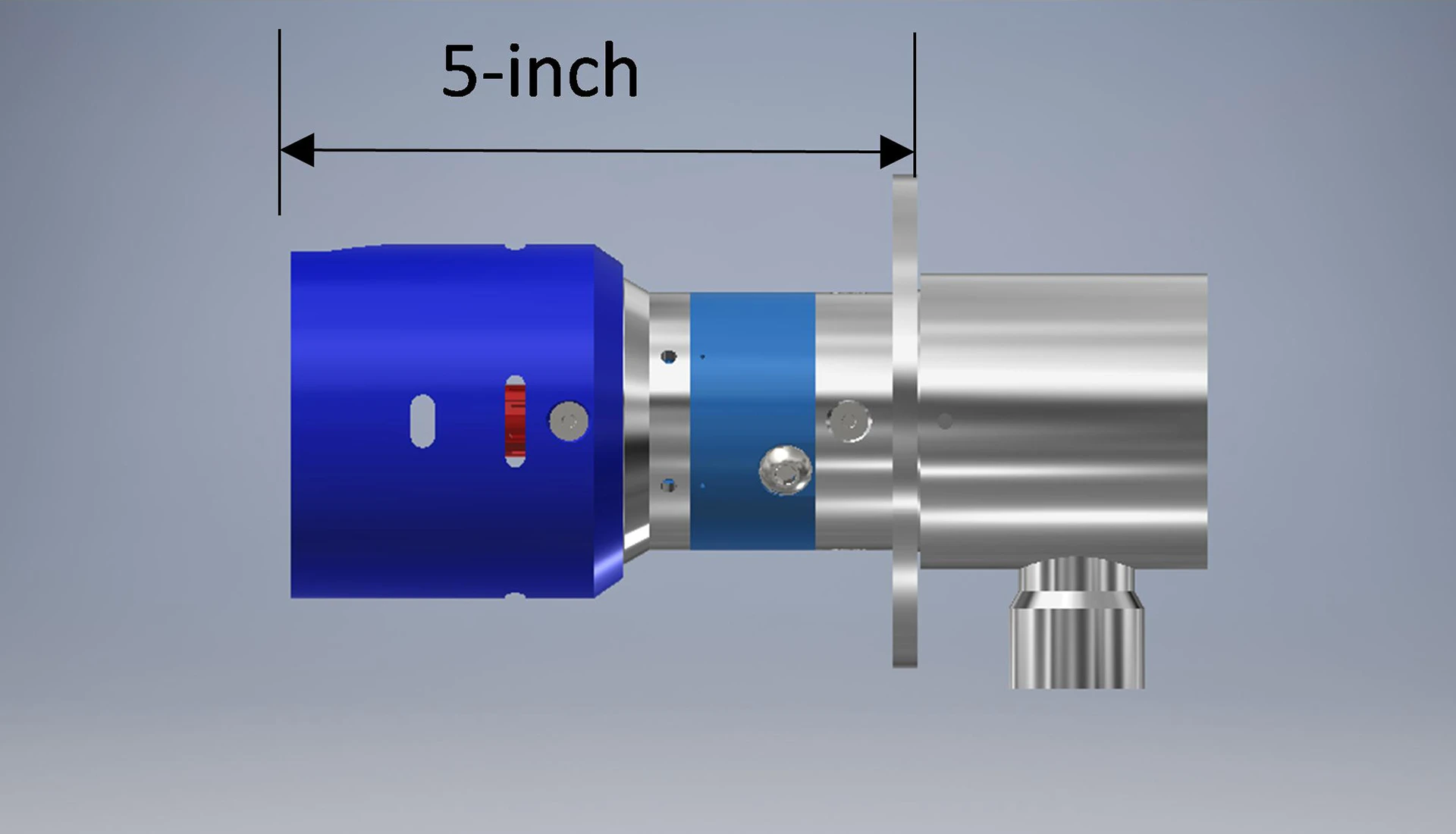

The DEEPLINC Hybrid Optic-Electric DL2200 connection was developed as a result of a recognized need for an increased reliability, wet-mateable electric, optic, and hybrid optic-electric connection to support Defense and Offshore Oil & Gas programs. This product is specifically designed to overcome the conventional product shortcomings experienced for more than a decade in these markets. The robust engagement and disengagement mechanisms inherent to our product are designed and packaged in an arrangement similar to existing product interfaces, providing a bolt-on reliability enhancement. The DL2200 further enhances system reliability and eliminates typical connector weak-link failure modes in both Defense Communications and Offshore Oil & Gas applications.
| INSERT TYPE | CONTACTS PER INSERT | CONTACT TYPE | TOTAL CONTACT AVAILABILITY (8 Inserts per Connection) | CAPACITY |
|---|---|---|---|---|
| Electrical | 1 | 20 Gage | 8 | 600 V |
| Optical | 1 | 1.25 mm FC or APC | 8 | 8 Fiber |
